产品展示
产品属性
产品名称: | 蒸脱烘干机及冷却回收装置 |
产品编号: |
产品描述
1.简介
蒸脱烘蒸脱烘干冷却回收装置是公司核心关键设备之一,它是在蒸脱机的基础上,增加了烘干装置,除了将提取后渣中残留有机溶剂蒸脱回收外,还同时将蒸脱后渣中仍残留的水分烘干。
蒸脱烘干冷却回收装置的核心设备是蒸脱烘干机。
2.工作流程及原理
提取渣进入蒸脱机后,提取渣被加热和直接汽脱溶,挥发出的溶剂气体进入冷凝器冷却回收,提取渣直接进入烘干层脱水。
蒸脱烘干机连续化运行,通过自动料门控制蒸脱、烘干的时间和脱溶、脱水的效果。
3.效率指标
蒸脱烘干后,提取渣残留有机溶剂含量≤500ppm,含水率≤12%。
4.应用范围
各种物料和溶液的混合料,但含液量要小于80%。
各种提取后植物物料和水的混合料。
各种提取后植物物料和有机溶剂的混合料,如甲醇、乙醇、丙酮、乙酸乙酯、石油醚等。
5.设备构成
蒸脱烘干机
密封进料器
冷凝器
受液罐
输液泵
沙克龙
蒸汽分包
过热器包
蒸汽流量计及调节阀
在线液位计
变频器
观察和清洗手孔
6.材质
材质有sus304、不锈钢和碳钢复合板等选择,也可根据客户的要求定做特种材质。
7.蒸脱烘干机型号代号
8.蒸脱烘干机型号规格及图片
型号规格一览表

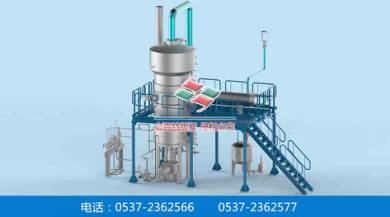

三维设计图片
