产品属性
产品名称: | 链条料篮提升机 |
产品编号: |
产品描述
1.产品简介

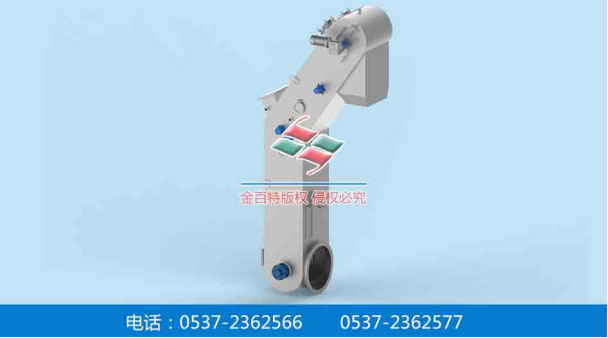

链条料篮提升机是公司常规产品之一,用于含渣溶液,或含液渣料的提升。
料篮有两种型式,一种为有眼料蓝,另一种为无眼料篮。
本公司生产的链条料篮提升机,完全按照GMP的规范要求设计、生产制造。

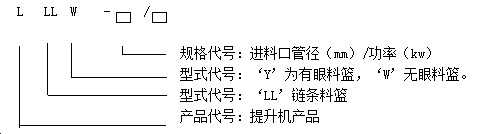

2.型号代号:
标记示例:LLLY-700/2.2型,表示进料口管径为700mm、有眼料篮的链条料篮提升机,电机功率2.2kw。
3.型号规格

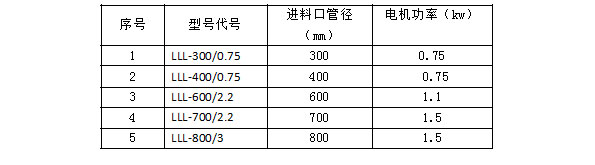

型号规格一览表
上述任一产品,都可根据用户要求设计定制控料仓容积、履带宽度、提升高度、输送长度等。
4.配置
4.1.标准配置
液位观察视镜
自动清洗器
手孔
4.2.定制配置
在线液位计
在线温度计
5.材质
材质有sus304、sus316等选择,也可根据客户的要求定做特种材质。
6.表面处理

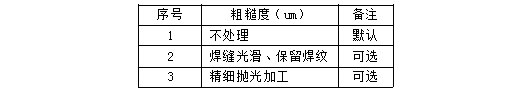

6.1.1.内表面粗糙度有下列选择

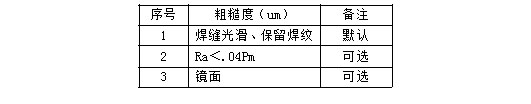

6.1.2.外表面粗糙度有下列选择
