产品属性
产品名称: | 园棍履带输送机 |
产品编号: |
产品描述
1.产品简介
园棍履带输送机是公司常规产品之一,主要用于原料和提取渣等物料的输送。
本公司生产的园棍履带输送机,根据用途不同有三种型式:一是直线型,二是‘Z’形,三是‘L’形,满足水平输送、斜上输送、提升输送等要求。
根据用途不同,履带的型式不同,有光板、隔板、挡板等不同选择。

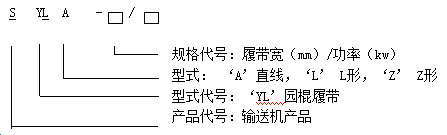

2.型号代号:
标记示例:SYLA-600/2.2型,表示履带宽度为600mm的园棍履带输送机,直线型,电机功率2.2kw。
3.型号规格

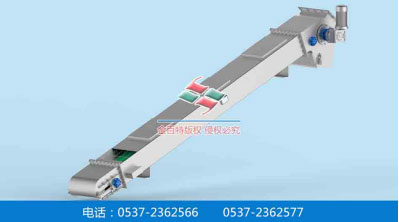

3.1.直线型园棍履带输送机
特点:输送机为直线型。

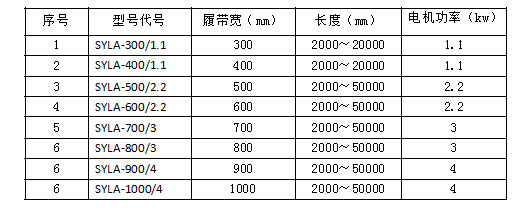

型号规格一览表

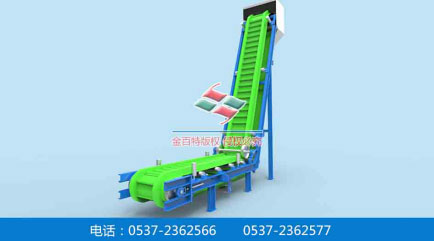

3.2.‘L’形园棍履带输送机
特点:输送机为‘L’型。

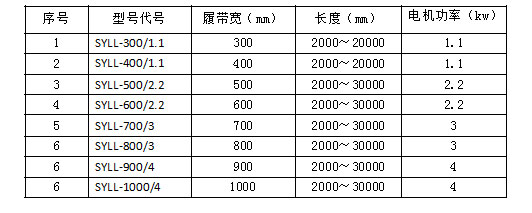

型号规格一览表

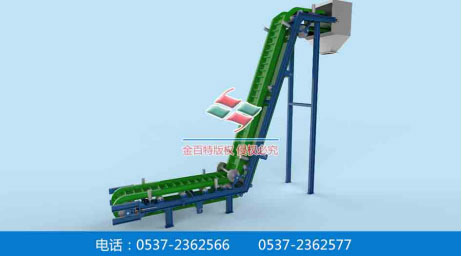

3.3.‘Z’形园棍履带输送机
特点:输送机为‘Z’型。
型号规格一览表
3.4.上述任一产品,都可根据用户要求设计定制履带宽度、输送长度或提升的高度。
4.配置
4.1.标准配置
进料口
出料口
方形手孔
刮料器
回料清扫装置
4.2.定制配置
进出料口的连接法兰
5.材质
框架、支架为有碳钢、sus30408等选择。
履带有食品级和普通选择。
可根据客户的要求定做特种材质。
