产品属性
产品名称: | 旋筒式分离器及连续渣液分离装置 |
产品编号: |
产品描述
1.简介
连续渣液分离装置是全密闭连续化运行智能化控制植物提取线的关键设备之一,专用于提取液的连续渣液分离,保证连续逆流提取机系统运行的稳定性,减小提取液含渣量,减轻后道过滤的压力。
连续渣液分离装置的核心设备是旋筒式分离器。
2.工作流程及原理
提取液被泵打入旋筒式分离器中,在分离器中,溶液和颗粒性物质被筛网分开,溶液(包含粒径比筛网更小的颗粒)穿过筛网流向后道过滤;粒径比筛网大的颗粒(含有一定量的溶液)被筛网截留,重新回到提取管中。
3.效率和质量指标
过滤精度:40~60mesh。
4.连续渣液分离装置的构成
渣液输送泵
旋筒式分离器
连续回渣控制器
自动反冲装置
提取液储罐
在线液位计
变频器
在线清洗装置,快开式观察和清洗手孔
5.材质
材质有sus304、sus316L等选择,也可根据客户的要求定做特种材质。
6.旋筒式分离器型号代号

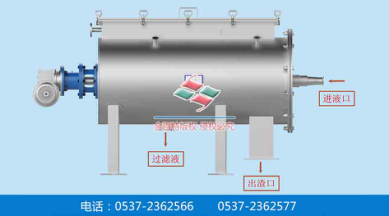

7.旋筒式分离器型号规格及图片
型号规格一览表

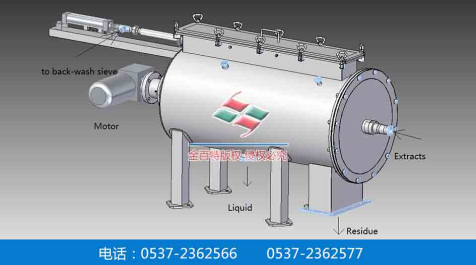

8.连续渣液分离装置三维设计图片
9.典型工程实例:

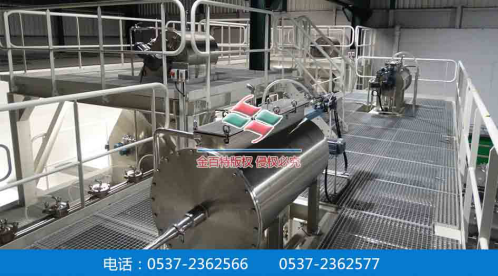

1500kg/h红豆杉提取生产线----实例照片
