公司的核心产品—各种型号的连续逆流(超声)提取机,它凝聚了超声提取、动态逆流提取、连续自动排渣过滤、连续动态循环蒸发浓缩、残渣残留溶剂回收、尾气残留溶剂回收、特种密封等15项专利和关键技术,实现了全程密封条件下的连续化运行、自动化控制,在低温或常温条件下实现快速提取、浓缩,是一套高效、节能、安全、环保的生物技术装备,广泛应用于从天然植物中生产制备中成药、天然色素、香精香料、食品添加剂、保健品、化妆品、饲料添加剂、植物农药等产品,特别适用于大规模使用有机溶剂提取热敏性物质。
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
产品展示
产品属性
产品名称: | 挤出机 |
产品编号: |
产品描述
1.简介
挤出机是公司核心产品之一,是全密闭连续化运行智能化控制植物提取线的关键设备之一,专用于提取后的渣中残留溶液的挤压回收,提高收率,减少浪费,对于有机溶剂,减少后道蒸脱回收的蒸汽用量。
公司生产的挤出机采取单螺杆锥体型式,连续化挤压,转速可调。
本公司生产的挤出机,完全按照GMP的规范要求设计、生产制造。
2.工作流程和原理
提取渣进入挤出机后,被强制挤压,挤出的溶液直接回流到提取管中;挤出后的渣料直接排放(水提)或进入蒸脱烘干机(溶剂提取)中,进行溶剂回收。
3.效率和质量指标
挤出后,渣料中残留含液量大约在60%~75%之间。备注:不同植物原料、不同溶剂,残留量不同。
4.应用范围
各种提取后植物物料和水、甲醇、乙醇等的混合料。
5.设备构成
控料仓
挤出机
在线料位计
变频器
在线清洗装置,快开式观察和清洗手孔
6.材质
材质有sus304、sus316L等选择,也可根据客户的要求定做特种材质。

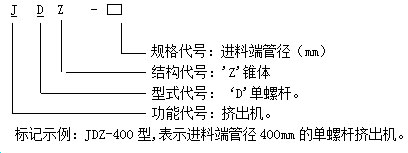

7.型号代号

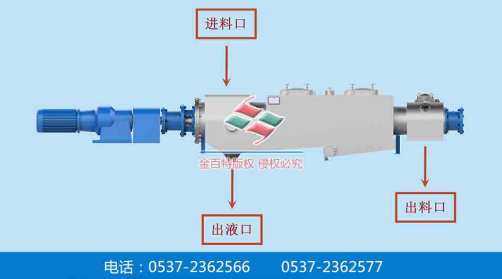

8.型号规格及图片

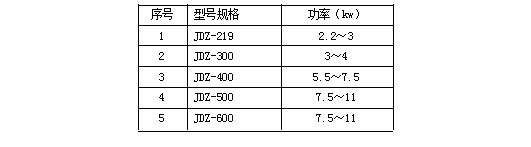

型号规格一览表

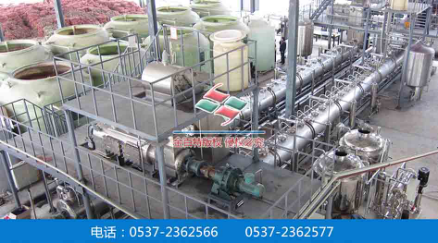

9.典型工程实例:
3000kg/h紫甘薯提取生产线
