产品属性
产品名称: | 常压储罐 |
产品编号: |
产品描述
1.产品简介
常压储罐是公司常规产品之一,主要用于提取生产线各个环节、常压条件下的溶液储存,有用于储存清液的储罐,有用于含渣溶液的储罐。
本公司生产的常压储罐有立式的和卧式两种。
本公司生产的常压储罐,完全按照GMP的规范要求设计、生产制造。
罐体上的配置,管口数量、大小可依据需要设计、制造。
2.型号代号:
3.型号规格
3.1.立式罐
3.1.1.溶媒储罐
特点:常压、立式,底封头为椭圆封头。

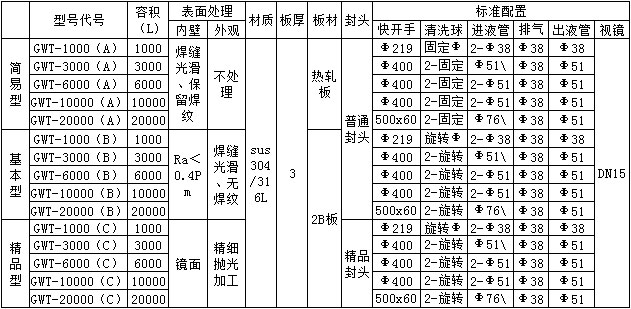

型号规格一览表
为防止假冒,保证公司的知识产权,所有图片全部采用公司自主绘制、具有版权的三维图片。

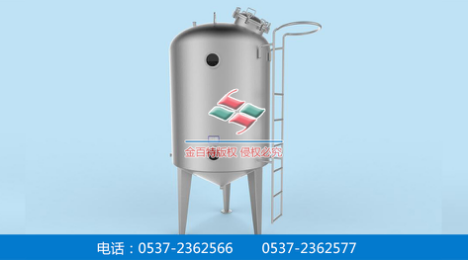

3.1.2.渣液储罐
特点:常压、立式,底封头为锥形封头。

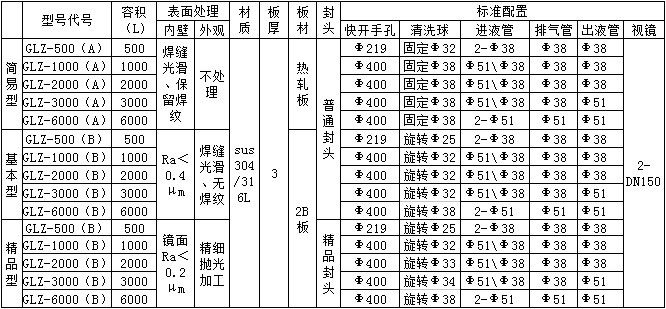

型号规格一览表

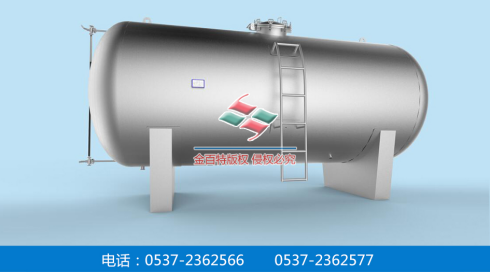

3.2.卧式罐
特点:常压、卧式,两端为椭圆封头。
型号规格一览表
3.3.上述任一产品,都可根据用户要求设计、定制。
