公司的核心产品—各种型号的连续逆流(超声)提取机,它凝聚了超声提取、动态逆流提取、连续自动排渣过滤、连续动态循环蒸发浓缩、残渣残留溶剂回收、尾气残留溶剂回收、特种密封等15项专利和关键技术,实现了全程密封条件下的连续化运行、自动化控制,在低温或常温条件下实现快速提取、浓缩,是一套高效、节能、安全、环保的生物技术装备,广泛应用于从天然植物中生产制备中成药、天然色素、香精香料、食品添加剂、保健品、化妆品、饲料添加剂、植物农药等产品,特别适用于大规模使用有机溶剂提取热敏性物质。
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
产品属性
产品名称: | 热回流提取罐 |
产品编号: |
产品描述
1.简介
热回流提取罐是公司常规产品,既可以实现有机溶剂的热回流提取,又可实现微沸煎煮水提,广泛应用于各种植物提取。
2.工作流程及原理
被提取的植物原料和提取溶媒投入到提取罐中,在加热或搅拌的作用下进行提取。
提取罐配备加热和保温装置,加速提取速度。
配备的冷凝器可以将过程中挥发的溶剂冷却回收,重新进入提取罐中,形成热回流提取。
3.应用范围
3.1.提取溶媒
适合:水、各种易燃易爆有机溶剂、碱性液、弱酸性液(PH≥2.0)。
不适合:强酸性液。
3.2.提取温度
温度可调可控,具体温度根据工艺要求任意设定,最高可至100℃。
3.3.原料及处理
适合:各种植物原料。
4.设备构成
4.1.主体部件
提取罐。
搅拌器(选配)。
自动排渣门。
自动清洗装置。
观察和清洗手孔
4.2.配置和控制器件
在线液位、温度、真空等检测仪表
蒸汽调节阀
5.型号代号
6.型号规格及图片

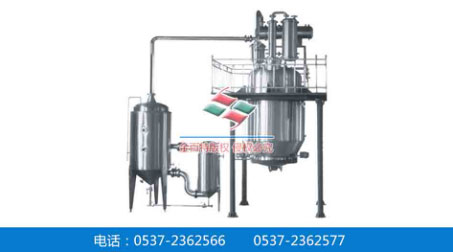

6.1.热回流提取罐
型号规格一览表
7.典型提取生产线工程实例:
